一、Docker安装测试
1、添加YUM源
|
1 2 3 4 5 6 7 8 |
tee /etc/yum.repos.d/docker.repo <<-'EOF' [dockerrepo] name=Docker Repository baseurl=https://yum.dockerproject.org/repo/main/centos/7/ enabled=1 gpgcheck=1 gpgkey=https://yum.dockerproject.org/gpg EOF |
2、安装Docker
|
1 |
yum install -y docker-engine |
3、启动Docker
|
1 |
systemctl start docker |
4、查看Dcoker版本
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 |
docker version Client: Version: 17.05.0-ce API version: 1.29 Go version: go1.7.5 Git commit: 89658be Built: Thu May 4 22:06:25 2017 OS/Arch: linux/amd64 Server: Version: 17.05.0-ce API version: 1.29 (minimum version 1.12) Go version: go1.7.5 Git commit: 89658be Built: Thu May 4 22:06:25 2017 OS/Arch: linux/amd64 Experimental: false |
二、Docker创建ELK容器
1、下载镜像
Pull相关的官方Docker镜像：
|
1 2 3 |
docker pull docker.elastic.co/logstash/logstash:5.5.1 docker pull registry.docker-cn.com/library/elasticsearch:5.5.1 docker pull registry.docker-cn.com/library/kibana:5.5.1 |
#官方的elasticsearch、kibana镜像创建容器无法正常启动，下载官方国内镜像创建容器启动正常
启动Elasticsearch容器:
|
1 |
docker run -p 9200:9200 -e "http.host=0.0.0.0" -e "transport.host=127.0.0.1" --name my-elastic -d registry.docker-cn.com/library/elasticsearch:5.5.1 |
启动Kibana容器：
|
1 |
docker run -p 5601:5601 -e "ELASTICSEARCH_URL=http://localhost:9200" --name my-kibana --network host -d registry.docker-cn.com/library/kibana:5.5.1 |
创建logstash/logstash.yml，配置xpack对于logstash的监控：
|
1 2 3 4 5 |
http.host: "0.0.0.0" path.config: /usr/share/logstash/pipeline xpack.monitoring.elasticsearch.url: http://localhost:9200 xpack.monitoring.elasticsearch.username: elastic xpack.monitoring.elasticsearch.password: changeme |
创建logstash/conf.d/logstash.conf，配置logstash的输入输出：
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
input { file { path => "/tmp/access_log" start_position => "beginning" } } output { elasticsearch { index => "logstash-nginx-%{+YYYY.MM.dd}" hosts => ["localhost:9200"] user => "elastic" password => "changeme" } } |
启动Logstash容器：
|
1 2 3 |
docker run -v /usr/local/elk/logstash/conf.d:/usr/share/logstash/pipeline/:ro -v /tmp:/tmp:ro \ -v /usr/local/elk/logstash/logstash.yml:/usr/share/logstash/config/logstash.yml:ro --name my-logstash \ --network host -d docker.elastic.co/logstash/logstash:5.5.1 |
然后使用curl访问http://localhost:9200/?pretty
|
1 2 3 4 5 6 7 8 9 10 11 12 13 14 |
curl http://localhost:9200/?pretty { "name" : "L3Tb2nx", "cluster_name" : "elasticsearch", "cluster_uuid" : "2ICG8P3DQ4Gzl3fnxSXUMw", "version" : { "number" : "5.5.1", "build_hash" : "19c13d0", "build_date" : "2017-07-18T20:44:24.823Z", "build_snapshot" : false, "lucene_version" : "6.6.0" }, "tagline" : "You Know, for Search" } |
如果可以看到类似上面的返回，则说明ES单机运行没有问题了。
访问http://localhost:9200/_search?pretty能看到日志相关信息
最后用浏览器打开kibana的链接http://yourhost:5601

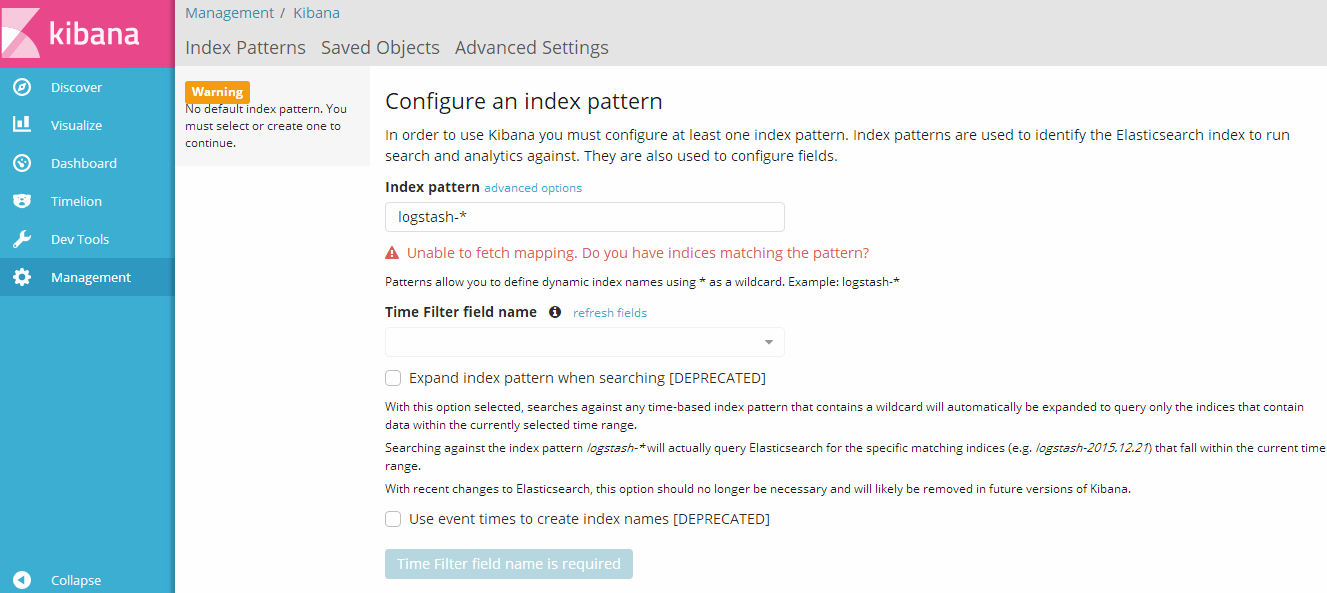

如果出现以下情况
说明索引还没生成
curl -XPUT localhost:9200/索引名

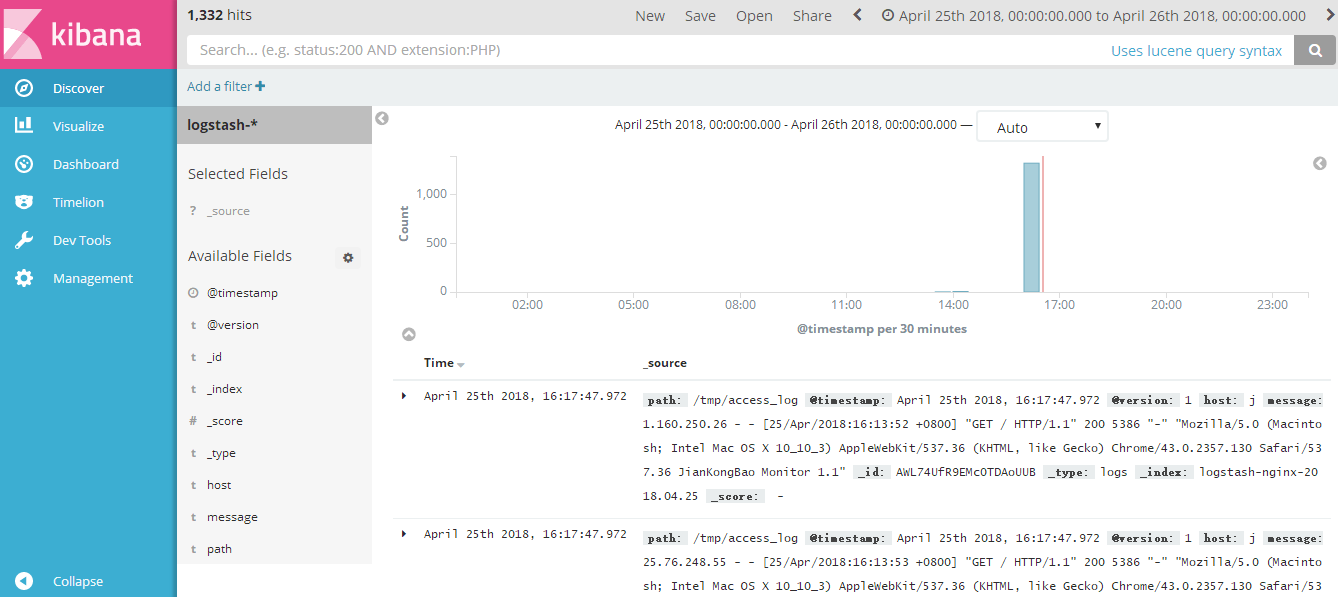

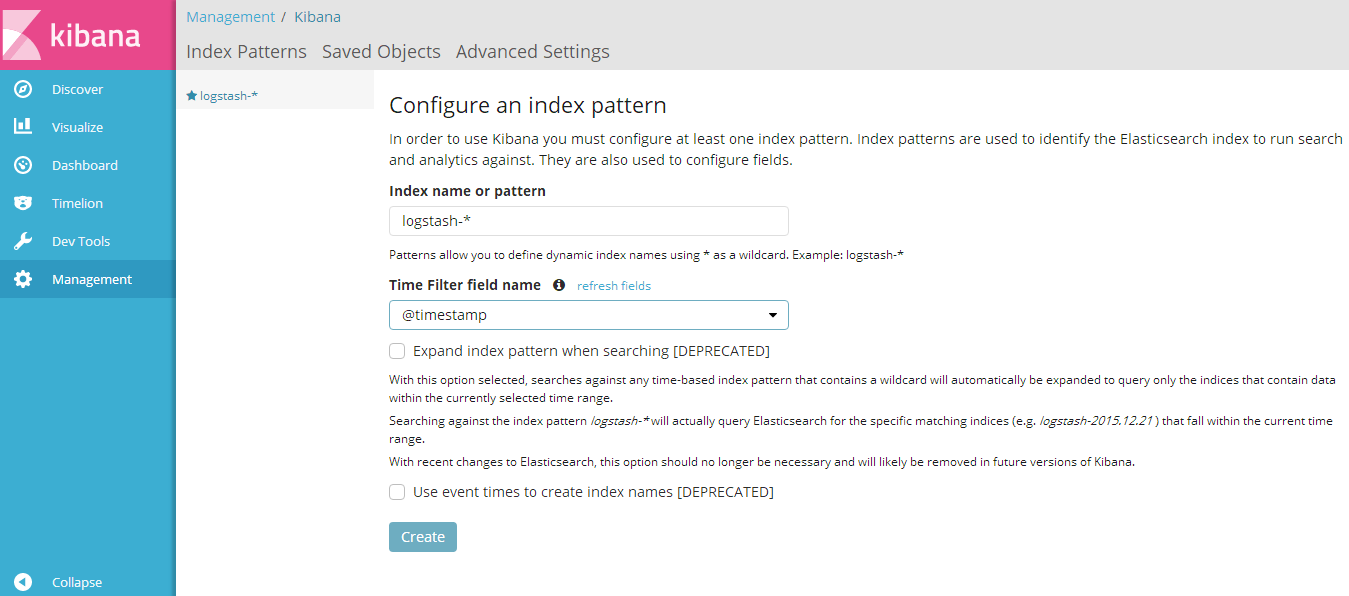

在”Configure an index pattern”页面点击Create按钮，在Kibana点击Discover菜单，可以看到相关的日志信息。
